• P235/75R17 all-terrain BSW tires

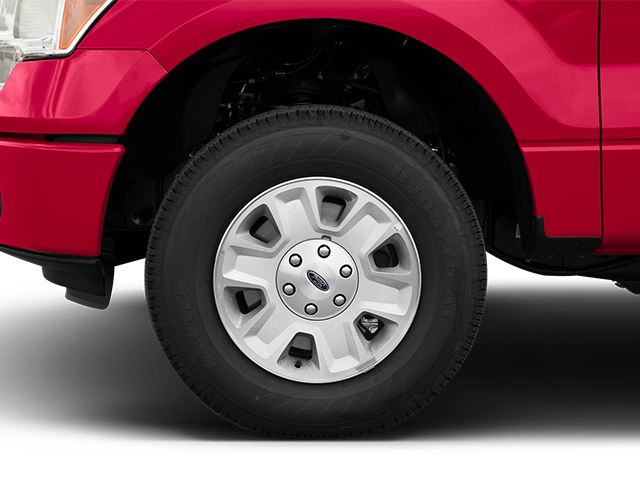

• 17" gray styled steel wheels
• Full size spare tire
• Under frame winch-type spare tire carrier w/safety catch & lock
• Black front bumper fascia
• Argent front/rear step bumper
• Black front/rear stone cuffs
• Black grille surround w/black "two-bar style" insert
• Cargo lamp integrated w/high mount stop light
• Black manual side mirrors
• Fixed rear window
• Rear solar tint glass
• Variable interval wipers
• Black door & tailgate handles
• Removable tailgate w/key lock & lift assist

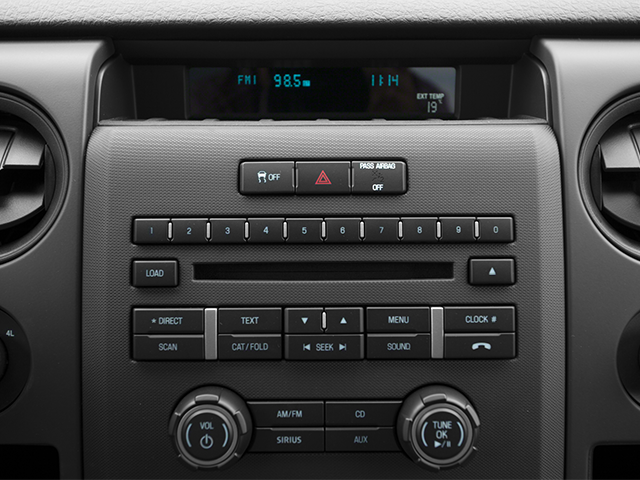

• AM/FM stereo w/clock

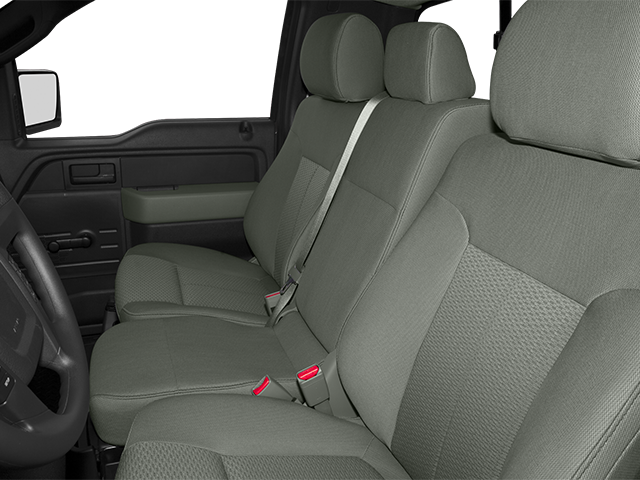

• Vinyl 40/20/40 split bench front seat
• Black vinyl floor covering
• Driver & passenger door scuff plates

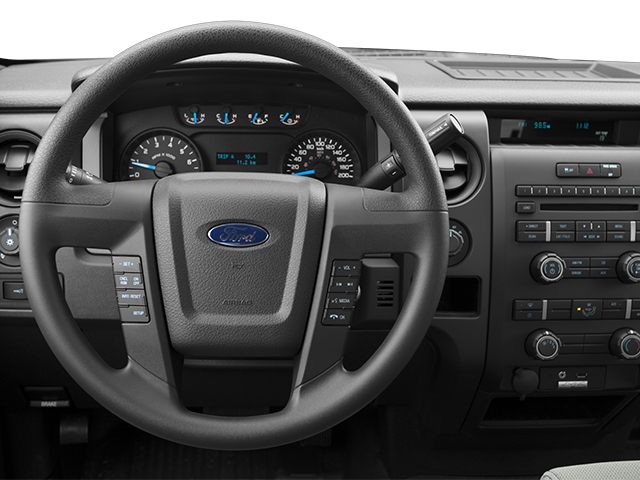

• Black urethane steering wheel
• Tilt steering column
• Display center -inc: warning messages & text functions
• SecuriLock passive anti-theft system (PATS)
• Manual air conditioning
• Black ring w/black vanes air conditioning registers

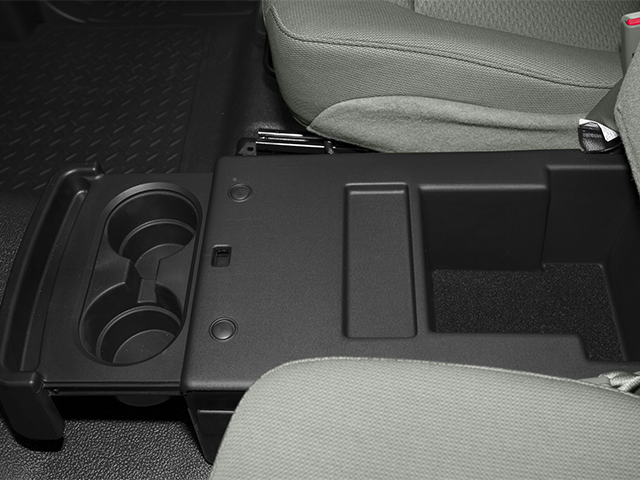

• Deployable cupholder under center portion of seat

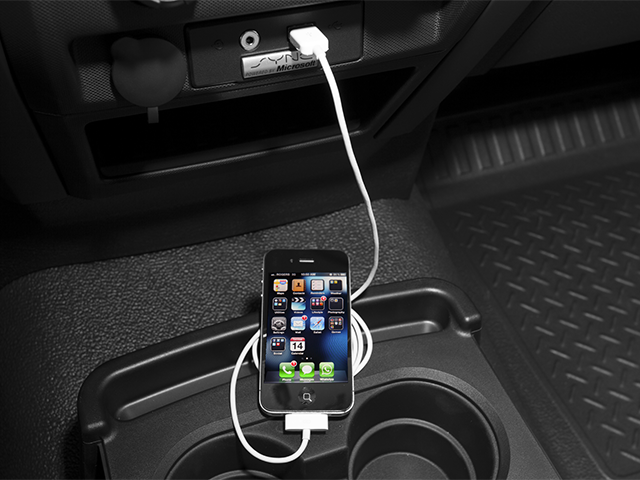

• Front pwr point
• Sunvisors w/driver side strap, passenger mirror
• Front passenger side A-pillar grab handle
• Dome light

• Anti-lock braking system (ABS)
• AdvanceTrac w/Roll Stability Control (RSC)
• Hill start assist
• Dual stage driver & passenger front airbags
• Dual stage driver & passenger seat-mounted side airbags
• Safety Canopy front side curtain airbags
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Auto lock safety belt feature for child seats
• Tire pressure monitoring system
• Dual note horn

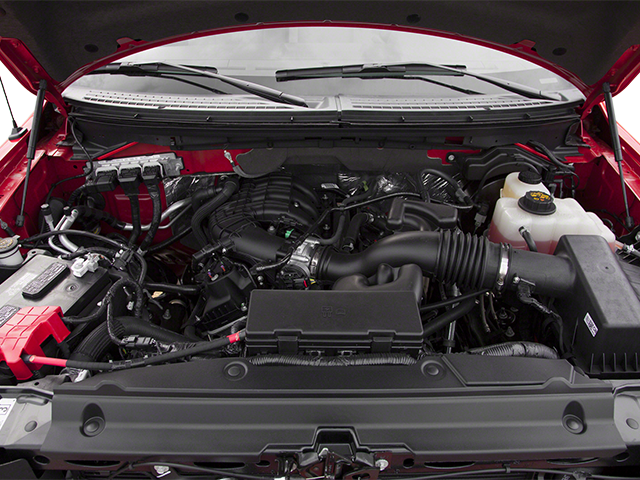

3.7L V6 FFV ENGINE

• (STD)

• Airbags - Front - Side
• Airbags - Front - Side Curtain
• ABS Brakes (4-Wheel)
• Air Conditioning - Front
• Traction Control With Trailer Stability Assist
• Seats Front Seat Type: 40-20-40 Split Bench
• Capless Fuel Filler System
• Braking assist hill start assist
• Airbags - Front - Dual
• Security Engine Immobilizer
• Front 12V Power Outlet(s)
• Child Seat Anchors LATCH System
• Front Suspension Classification: Independent
• Front Suspension Type: Strut
• Electronic Brakeforce Distribution
• Power Steering
• Windows Front Wipers: Intermittent
• Stability Control
• Traction Control
• Airbags - Passenger - Occupant Sensing Deactivation
• Cargo Bed Light
• Seatbelts Seatbelt Force Limiters: Front
• Seatbelts Seatbelt Pretensioners: Front
• Steering Wheel Tilt-Adjustable
• Tachometer
• Warnings And Reminders Maintenance Reminder
• Suspension Stabilizer Bar(s): Front
• Air Conditioning - Front - Single Zone
• Impact Sensor Post-Collision Safety System
• Mirror Color Black
• Roll Stability Control
• Audio - Antenna: Mast
• Clock
• Driver Seat Manual Adjustments
• Front Headrests Adjustable
• Front Seatbelts: 3-Point
• Number Of Front Headrests 2
• Passenger Seat Manual Adjustments
• Tailgate Removable
• Warnings And Reminders Low Fuel Level
• Warnings And Reminders Low Oil Level

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 15.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3150
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): 2675
• Curb Weight - Rear (lbs): 2010
• Gross Vehicle Weight Rating Cap (lbs): 6450
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 5500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1375
• Suspension
• Suspension Type - Front: Double-Wishbone
• Suspension Type - Rear: Live Axle
• Spring Capacity - Front (lbs): 3150
• Spring Capacity - Rear (lbs): 3500
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 3750
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 36.068
• Shock Absorber Diameter - Rear (mm): 32.004
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.78 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.413
• Tires
• Front Tire Order Code: T7B
• Rear Tire Order Code: T7B
• Front Tire Size: P235/75R17
• Rear Tire Size: P235/75R17
• Spare Tire Size: P235/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.7
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.9
• Length, Overall w/o rear bumper (in): 213.2
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 74.8
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 135.6
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -

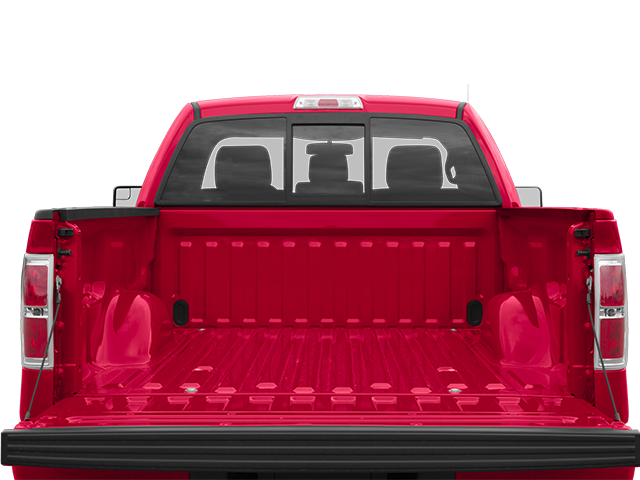

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 65.5
• Ext'd Cab Cargo Volume (ft³): 17.4
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 66.6
• Front Hip Room (in): 60.5
• Summary

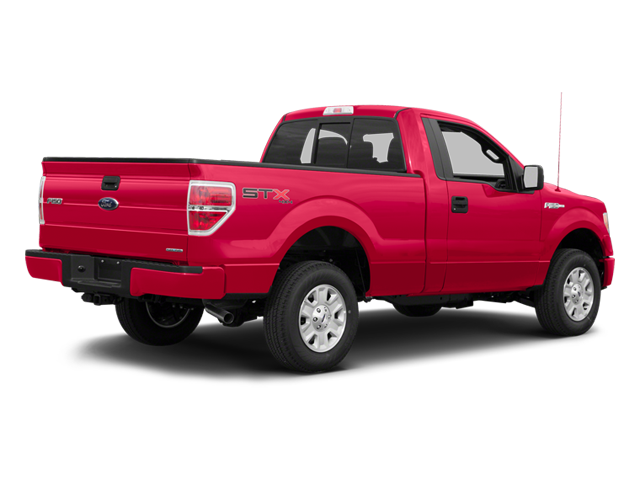

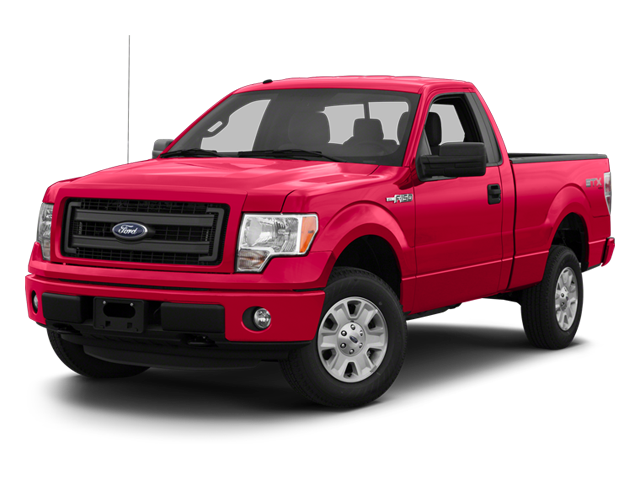

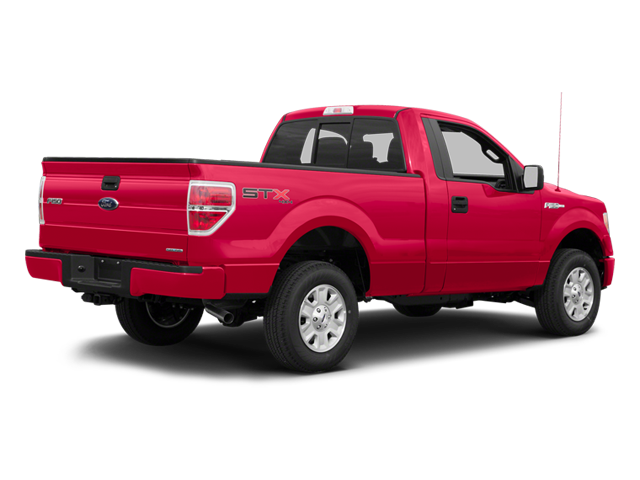

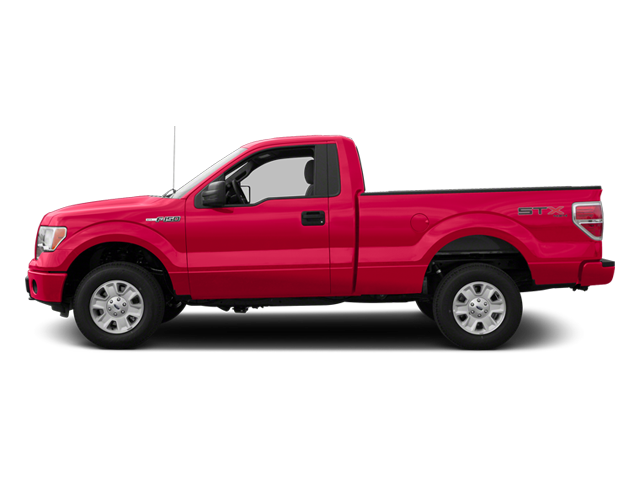

• Vehicle Name: Ford F-150
• Body Style: Regular Cab Pickup
• Emissions
• EPA Greenhouse Gas Score: 3 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.7
